Heman175 Skid Steer Loader


Note:- All dimensions are variable within ± 1.5%. VERT reserves the right to change specifications without prior notice.

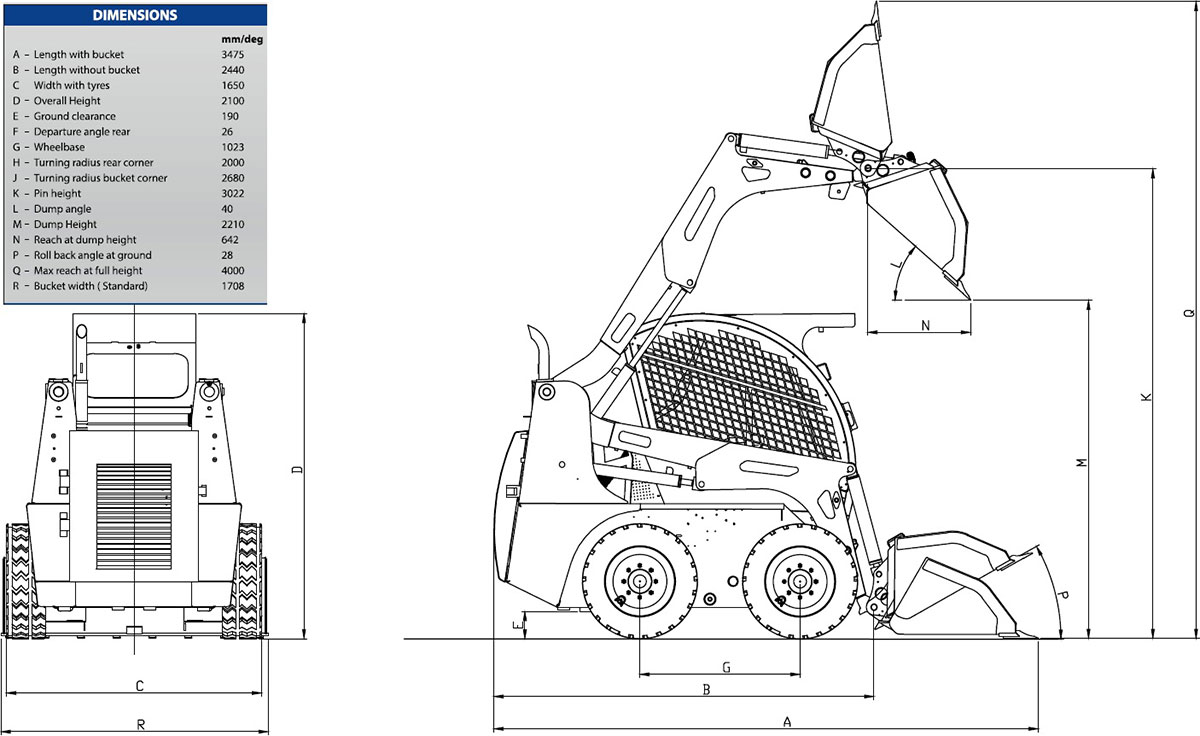

Dimensions		 mm/deg


A Length with bucket 3475
B Length without bucket 2440
C Width with tyres 1650
D Overall Height 2100
E Ground clearance 190
F Departure angle rear 26
G Wheelbase 1023
H Turning radius rear corner 2000
J Turning radius bucket corner 2680
K Pin height 3022
L Dump angle 40
M Dump Height 2210
N Reach at dump height 642
P Roll back angle at ground 28
Q Max reach at full height 4000
R Bucket width (Standard) 1708



Features
  • Multi-disc parking brakes
  • Gear drive
  • Front cab access
  • Fuel water trap
  • Hydraulic parallel lift
  • Adjustable seat
  • Instruments audio/visual
  • Instruments
  • Dual element air cleaner
  • Chassis-rigid fully welded high tensile steel structure
  • Roof window for enhanced operating visibility.
  • Rear window for emergency exit.
  • Heavy duty gear boxes with slip-free gears.
  • Axles of high ductile forgings, self lubricating.

Mechanical hitch for quick change of attachments.

  • Ergonomically designed seat, user friendly controls.
  • Visual and audio warning to prevent system failures.
  • Adequate inbuilt safety measures for operator/machine.
  • Hydraulic tilt back cabin for maintenance ease.
  • Easy to maintain and service with normal tools.

Transmission


Hydrostatic 4X4 independent drive through Tandem variable displacement acial pumps

Fixed displacement low speed high torque gerola motors

Final drive through positive gear boxes


Tyres
Front/rear 10X16.5-8/10PR
Max. travel speed 10 kmph


Specification


SAE Operating weight 3050/2990 Kgs
Standard bucket capacity 0.46 cu m
Maximum lift height 3022 mm
Time to raise lift arms fully 3-5 Sec.
Breakout force-bucket 1885 Nm
Breakout force-lift arm 1445 Nm.


Standard Features
  • Auxiliary hydraulics
  • Cab - swing up
  • Tubeless tyres
  • Key stop
  • Lift arm stop
  • Lifting eyes
  • Working light
  • Quick hitch
  • Roof window
  • Safety seat belt
  • Air cleaner clog warning indicator
  • Battery charge
  • Charge pump pressure
  • Coolant temperature gauge
  • Engine oil pressure
  • Fuel level gauge
  • Hour counter
  • Hydraulic oil temperature gauge
  • Cabin light
  • Rear window for emergency exit
  • Hydraulic clog indicator
  • Fuel clog indicator
  • Cab with front door lock
  • Rear view mirrors
  • Wiper motor with wiper blade
  • Cabin fan
  • Head light s with side indicators
  • Tool kit
  • 4 chamber tail lamps

Hydraulics

Engine driven gear pump with valve block, twin arms lift cylinder with end cushion and bucket cylinders.

Flow (Liters per min) 80
Working pressure (bar) 175



Electricals


12 volts negative earth system with battery isolator


Battery 130 AH
Low maintenance alternator 36 Amp
Starter motor 12 V



Brakes


Service brake: Hydraulically activated and released multi-plate fade free brakes form integral part of drive motors.


Parking Brake: Electrically activated

Capacities

Fuel system 62 Liters
Engine lub oil 9.5 Liters
Engine coolant 16 Liters
Transmission 14 Liters
Hydraulic system 70 Liters



Performance

Rated operating capacity 600-750 Kgs
Tipping load 1200-1500 Kgs



Engine


Standard
Simpson TSJ436 Industrial BS III 60PS/44.1Kw @2200rpm 4 cylinder, water cooled, Diesel Engine, Turbo Charge



Optional

Simpsons, 4 Cylinder in line direct injection, liquid cooled. Gross Power @2200rpm-74.8PS/55Kw. Turbo Charge. All engines comply with BS-III norms.



Attachments
  • 6 IN 1 Bucket
  • Sweeper collector
  • Ripper tooth
  • Backhoe
  • Excavator Buckets: 300mm, 450mm, 600mm,
    & Ditch cleaning bucket.
  • Pallet Forks
  • Industrial grappler
  • Rock breaker
  • Snow blower
  • Steel tracks (Track over tyres)
  • Rubber tracks (Track over tyres)
  • Post hole borer / auger
  • Shredder
  • Snow Blade
  • Stump Grinder
  • Trencher
  • Side Tip Bucket
  • High Tip Bucket



Optional
  • Heavy duty tyres/Solid tyres.
  • Buckets: Varying capacities upto 0.65 cum limited to machine rating operating capacity.
  • Servo Variant also available
